AUP 2 - automatic flushing system of urinals
AUP 2 is an automatic flushing system of urinals. A photocell sensor reacts to people (subjects) entering the scanning zone. After leaving the scanning zone the flushing system is activated.
The photocell sensor does not react to people passing by and is not sensitive to daylight and artificial lighting. After 24 hours inactivity the urinal flushes itself. The rate of water flow can be adjusted by a spherical valve.
The automatic flushing system of the AUP 2 urinal is intended for social facilities where the user?s comfort and the maintenance of hygiene is required at maximum water savings.
Complete delivery
- installation casket
- inlet and outlet bolting

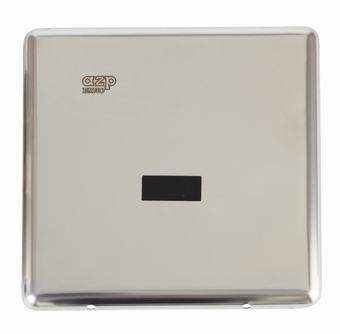

- stainless steel casing with casket of electronics
- electromagnetic valve
- spherical valve
- mounting spacer tray
- covering metal assembly plate
- fittings
Requirements for setting up the construction
- Set-up alcove 150 x 150 x 70 mm for installation of AUP 2 casket
- Set-up water inlet G 1/2? for connection to the installation box - as per picture
- Set-up outlet ? as per siphon
- Set-up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC
Basic technical information
| Radius of sensor | self-adjusting |
| Water inlet | G 1/2? |
| Water pressure | 0,1 ? 1,0 MPa |
| Outlet | as per type of urinal |
| Adjustable time of flushing | 1 ? 20 sec. (adjusted to 5 sec.) |
| Power supply | 12 V, 50 Hz |
| Power requirement | 6 VA |
| Source of power supply | ZAC 1/20 (max. 3 x AUP 2) |
| ZAC 1/50 (max. 8 x AUP 2) | |
| Weight | 1,5 kg |

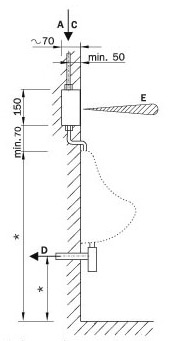

FiguresUrinal with rear water input

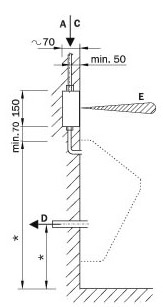

Urinal with upper water input
| A - | water inlet inner pipe G 1/2" |
| C - | electricity supply Cabel CYKY 2Ax1,5 |
| D - | outlet (as per siphon) |
| E - | zone of scaning |
