AUM 7.B - for sink with twin bowles, with lever mixer - 6V (4x1,5)

PDFPrintEmail

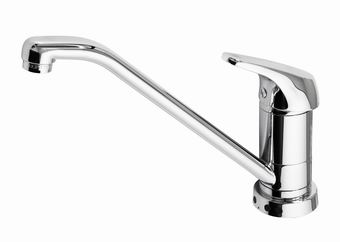

AUM 7 is an automatic sensor-controlled tap for sinks with the possibility of setting the water-flow and temperature by a lever mixer. Water turns on automatically after a brief shading of the photocell head by the user's hand and turns off after repeated shading of the sensor. If repeated shading of the sensor does not occur, water stops flowing after the lapse of adjusted period of time. The easy setting of the temperature and flow of water is controlled by a lever mixer according to the individual requirements of each customer. The water cannot flow when the lever mixer is fully lowered. The arm of the tap is rotary. The tap is equipped with a mechanism against excess pressure. Automatic sensor-controlled taps AUM 7 meet EU standards and are intended for facilities where the user?s comfort and the maintenance of hygiene is required at maximum water savings.
Complete delivery
  1. tap with lever mixer
  2. photocell head
  3. electronics with a holder for hanging
  4. electromagnetic valve
  5. corner valve with filter ? 2 pcs
  6. battery holder (AUM 7.B)
  7. cylindrical batteries 1,5 V (AUM 7.B) - 4 pcs
  8. connecting hoses
  9. fixing strap
  10. M8 screw with nut and pads
  11. tube with mastic
Requirements for setting up the construction
  1. Set-up water inlet, pipe 1/2? ? as per picture
  2. Set-up outlet ? as per siphon
  3. Set-up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 7.B)
Download information about the product
Basic technical information
Radius of sensorself-adjusting
Water inletG 1/2?
Water pressure0,2 ? 0,8 MPa (AUM 7.B)
 batteries ? 1,5 V (AUM 7.B) ? 4 pcs.
Diameter of installation opening in washbasinmin. 33 mm
After-flow period5 ? 100 sec. after 5 sec. (adjusted to 15 sec.)
Power supply12 V, 50 Hz (AUM 7)
Power requirement10 VA (AUM 7),6 VA (AUM 7.E)
Source of power supplyZAC 1/20 (max. 2 x AUM 7 or 3x AUM 7.E )
Operating life of batteriesapprox. 1,5 years at 100 operations a day
Weight2,5 kg
Figures

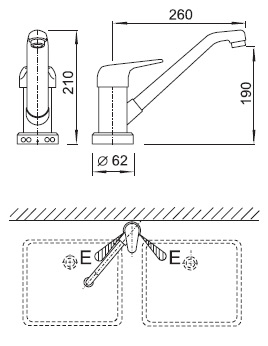

Figure - AUM 7 for sink with twin bowles
E -zone of scanning
