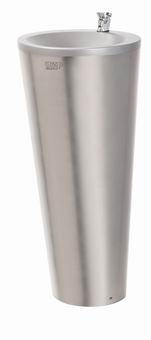

AFO 03 D - stainless steel drinking fountain for children
AFO 03 D is a new smaller version of AFO 03 drinking fountain. It is designed for children in kindergartens and elementary schools. AFO 03 D is intended for indoor as well as outdoor use - its construction enables easy removal to prevent the valve from freezing and destruction. The conical body gives the fountain an interesting shape and makes it a suitable complement to the interior of public buildings. A good combination of brushed and sandblasted surface finishes creates a special look of the fountain.
The fountain is manufactured from the stainless steel AISI 304. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Complete delivery
- Stainless steel drinking fountain
- Press valve with nozzle
- Water supply hose with ball valve
- Outlet with waste trap
- Anchoring material
Requirements for setting up the construction
- Set-up water supply pipe G 1/2" according to the scheme
- Set-up outlet d = 40 mm according to the scheme
Download information about the product
Basic technical information
| Dimensions | 500 x d 300 (top), d 200 (bottom) mm |
| Water inlet | G 1/2? |
| Outlet | d = 40 mm |
| Material | AISI 304 |
| Water pressure | 2 - 6 Bar (recommended 3 Bar) |

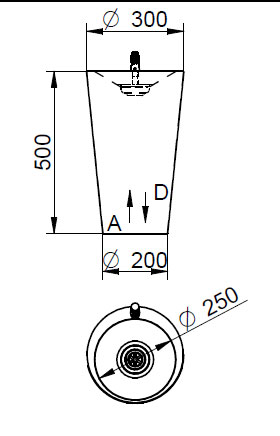

Figures
| A - | water inlet G 1/2" |
| D - | outlet d = 40 mm |
