AUM 09.TV - washbasin, middle-size sink, wall mounted, with thermostatic valve - 12V, 50Hz
AUM 09 is a sensor-controlled stainless steel wall-mounted washbasin. The washbasin is equipped with sensor-controlled outlet arm. Water turns on automatically when the user's hands are placed within the sensor's range and turns off when they have been removed. Water stops running with a certain time delay after the hands have been removed from the scanning zone. The washbasin is equipped with a mechanism against excess pressure of hot and cold water.
Complete delivery
- sink with sheathing
- outflow arm
- photocell head
- electronics
- electromagnetic valve
- corner valve with filter (AUM 09.2, .TV ? 2 pcs)
- spherical valve (AUM 09.TV)
- mixing valve (AUM 09.2)
- thermostatic valve (AUM 09.TV)
- through-flow water heater (AUM 09.E)
- source of power supply ZAC E ? 12 V, 50 Hz (AUM 09.E)
- waste siphon
- connecting hoses
- small assembly materials
Requirements for setting up the construction
- Set-up water inlet as per picture
- Set-up outlet d = 40 mm
- Set-up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 09.E)
- Set-up cable CYKY 3C x 1,5 ? 2,5 (for AUM 09.E)
Download information about the product
Basic technical information
| Radius of sensor | 0 ? 0,3 m |
| Water inlet | G 1/2? |
| Outlet | d = 50 mm |
| Inner dimension of the washbasin | 370 x 340 x 150 mm |
| Electricity protection | IP 55 |
| Adjustable time of water flow | 0 ? 4 sec. (adjusted to 1 sec.) |
| AUM 09.1, .2, .TV | |
| Water pressure | 0,2 ? 0,6 MPa |
| Power supply | 230 V, 50 Hz |
| Power requirement | 3 500 W |
| Source of power supply | ZAC 1/20 (max. 3 x AUM 09) |
| ZAC 1/50 (max. 8 x AUM 09) | |
| Weight | 10,5 kg |
| AUM 09.E | |
| Recommended pressure | 0,3 MPa (without variances and air bubbles) |

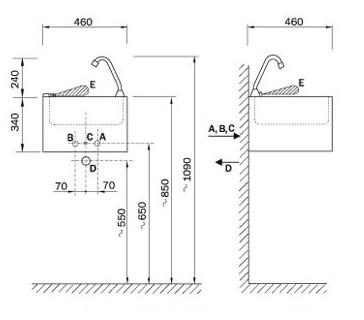

Figures
| A - | COLD WATER (AUM 09.2, .TV, E) MIXED WATER (AUM 09.1) Innerpipe G 1/2" | D - | OUTLET | |
| B - | HOT WATER (AUM 09.2, .TV) Inner pipe G 1/2" | E - | ZONE OF SCANING | |
| C - | ELECTRICITY SUPPLY |
