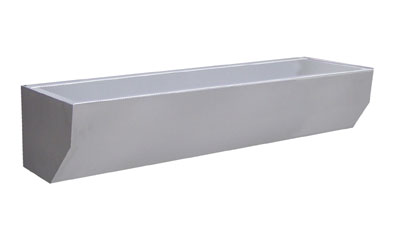

AUL 04.3L - suspension stainless steel wash trough for doctors - length 2500 mm
AUL 04.L is a series of stainless steel wash troughs designed for medical environment. In comparison to the standard AUL 04 series the medical troughs of AUL 04.L series have a front cover and are, above all, made of stainless steel with improved resistance to chlorine required in medical industry ? AISI 316L (standard AUL 04 series is made of common food stainless steel AISI 304 ? it is not resistant to chlorine). The troughs are ballotini sand-blasted ? decent mat finish. Outlet is positioned on the left or on the right (in front view on the trough) ? please specify in the order.
The troughs are supplied in 4 standard lengths 1250, 1900, 2500 and 3000 mm.
Per order we often produce troughs of different dimensions ? please contact us with your requirements. Possible modification to other dimensions according to customer's requirements.
AUL 04.L is manufactured from the stainless AISI 316. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Complete delivery
- Stainless steel trough with fixing bar
- Fittings
Requirements for setting up the construction
- Set up outlet according to the siphon/waste trap used. (Siphon is not included in delivery.)
Basic technical information
Water outlet | for outled valve 6/4? |
Overall dimensions | L × 430 × 420 mm |
Inner dimensions of trough | L-60 × 330 × 200 mm |
Material | AISI 316L |
AUL 04.1L | |
Length L | 3000 mm |
AUL 04.2L | |
AUL 04.3L | |
AUL 04.4L |

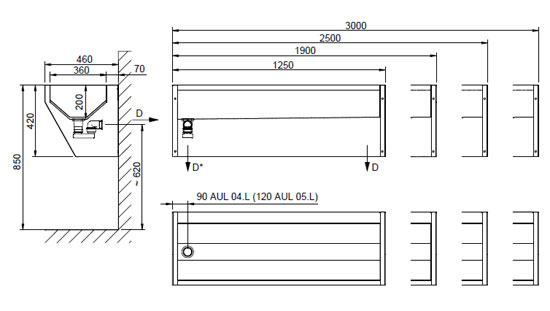

Figures


*D - | outlet (in this version on left side) |
