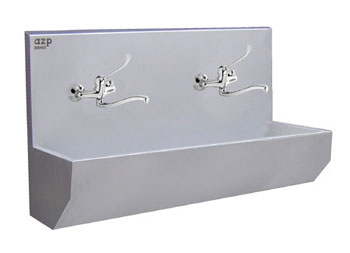

AUL 03Z.2L - suspension st. steel wash trough for doctors with 2 lever mixers - length 1900 mm

PDFPrintEmail
AUL 03Z.L is a series of stainless steel wash troughs designed for medical environment. The troughs are deeper and higher than the usual ones to provide the user more space. The troughs are also equipped with mixers completed by medical lever. As for the model the number of mixers can be 1 to 4. In compliance with requirements in medical industry the wash troughs are made of stainless steel with improved resistance to chlorine ? AISI 316L (in contrary to standard stainless steel AISI 304 used for normal troughs). The troughs are ballotini sand-blasted ? decent mat finish. Outlet is positioned on the left or on the right (in front view on the lavatory) ? please specify in the order. AUL 03Z.L is manufactured from the stainless steel AISI 316. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Complete delivery
  1. Stainless steel trough with medical lever mixers
  2. Outlet d = 50 mm
  3. Suspension bar + fittings
  4. Interconnecting water supply to individual mixers
Requirements for setting up the construction
  1. Set up outlet d = 50 mm
  2. Set up hot and cold water inlets G 1/2" according to technical drawing
Basic technical information
Water outletd = 50 mm
Overall dimensionsL × 460 × 1030 mm
Inner dimensions of troughL-60 × 360 × 200 mm
MaterialAISI 316L
AUL 03Z.1L
Length L3000 mm
AUL 03Z.2L
AUL 03Z.3L
AUL 03Z.4L
Figures

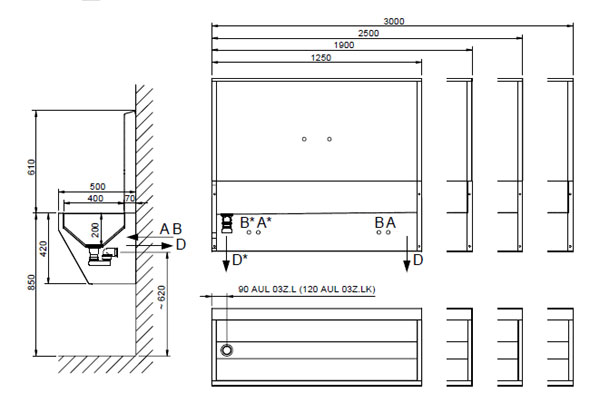

Figure - AUL 03Z.L suspension stainless steel wash-trough with back and medical mixers
D -outlet (in this version on left side)
A -cold water G 1/2"
B -hot water G 1/2"
