ST 01 - sanitation container for knives

PDFPrintEmail
ST 01 is a knife sanitation container with electric heating designed for slaughterhouses and meat processing operations. The water temperature of 83°C in the container is kept up by means of an electronic temperature regulator with a digital display. If the container is switched on with no water in it or if water is leaking during the operation, the electronic temperature regulator switches off the unit thus prevents damage of the heating body. The sanitation container is equipped with inlet and outlet valves and spillway to ensure a maximum height of water level. The water inlet of the sanitation container is equipped with a backflow valve. The knife holder in standard finish is made for 4 knives with maximum blade length of 210 mm. The container can be made to order in modifications: deeper, for more knives or for a chopper. The sanitation container can be mounted on a wall by means of a K 01 cantilever or set on the floor by means of an S 01 column.
Complete delivery
  1. container with sheathing
  2. covering plastic plate
  3. heating body
  4. electronic thermostat
  5. inlet and outlet valve
  6. knife holder
  7. connecting electric cable
Requirements for setting up the construction
  1. Set up the water inlet (pressure hose from drinking water distribution piping)
  2. Set up the outlet (hose with inner dimensions 20 is lead to cover of outlet system of manufacturing premises)
  3. Set up the power supply ? 12 V, 50 Hz, which must be equipped with a 6 A circuit breaker and connected via a switcher or plug, which complies with the particular surroundings and is compatible with the requirements of the main switcher according to norm ČSN EN 60204-1 (33 22 00)
Download information about the product
Basic technical information
Water inletG 1/2?
Outletinner dimensions 20
Electricity protectionIP 55
Power supply230 V, 50 Hz
Power requirement800 W
Temperature of sanitation liquid83oC
Capacity of container3,5 l
Weight5 kg
Figures

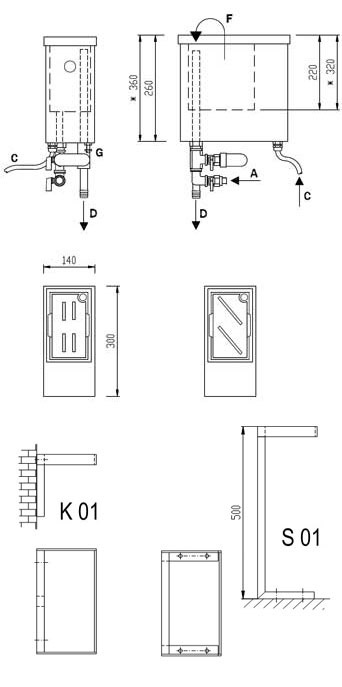

Figure - ST 01 sanitation container for knives
A -water inlet (filling)F -overflow
C -electricity supplyG -pin
D -outlet (drawing off)
