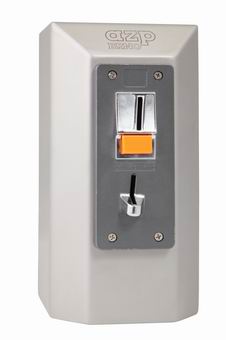

MAD 5 - slot machine for door opening ? wall-mounted
MAD 5 is a simple stainless wall slot machine to open the door for fee (opening an electronic door lock ? time period can be set). It is beneficial for its easy installation by screwing to wall and easy operation.
The slot machine reacts to one type of coin inserted inside as a reference; other coins are ignored. Money-box is accessible through a special lock.
The slot machine is fed by safe voltage 12 V, 50 Hz from ZAC source.
MAD 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Complete delivery
- stainless steel casing
- coin scanner
- electronics
- box for coins
- electromagnetic lock
Requirements for setting up the construction
- Set up electricity cable for power supply 12 V, 50 Hz from source ZAC
- Connection of electricity between coin maschine and electric door lock
Basic technical information
| power supply | 12 V, 50 Hz |
| power input | 5 VA |
| source of power supply | ZAC 1/20 |
| kind of coins | any single coin ? complying with the inserted reference one |
| weight | 3,2 kg |
| adjustable time of door unlocking | 1-20 s |

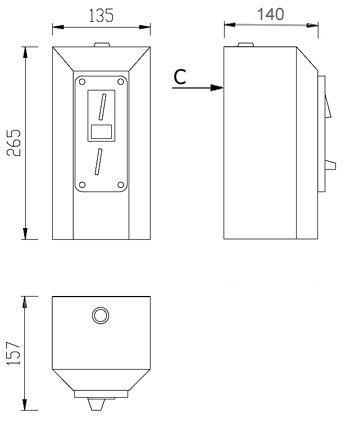

Figures
| C - | electricity supply + lock control |
