VS.E1V1 - column with 1x el. socket and 1x water outlet

Price:

Ask a question about this product

Manufacturer:

VS are stainless steel columns for unpaid electricity and/or water release. Columns can be fixed into the concrete (using ROV 03 frame) or combined with sewer inlet OV 03 (using fixing plates on column and sewer inlet, ROV 03 frame is not necessary). Electricity sockets do not include own electricity protection. The overcurrent circuit breaker must be solved separately in other place. VS are standardly manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Complete delivery

stainless steel column
number of el. sockets according to the version type
number of water taps according to the version type

Requirements for setting up the construction

Set-up suitable hole in the ground for installation of anchoring construction
According to the version type set-up protected el.cable and water inlet

Basic technical information

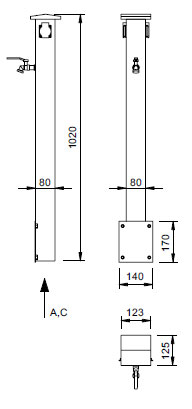

Dimensions	1000 × 80 × 80 mm (820 mm above the floor)
Number of el. sockets	according to the version type
IP protection	IP 44
Input/output voltage	230 V, 50 Hz
Voltage output load	according to the el. protection used ? max. 16 A ? column itself does not include any protective breakers or transswitches
Number of water taps	according to the version type
Water inlet/outlet	G 3/4?
