MSE2 N.2E - st.steel column with 2 protected sockets

PDFPrintEmail
MSE 2N are stainless steel columns for unpaid electricity release. Standard version types offer 2, 4 or 6 el. sockets including overcurrent and short-circuit protection as well as protective switch. Looping of el.cables is possible inside the column, therefore it is not necessary to connect every column by individual el.cable from central switchbord. Each column is equipped with small roof protecting the stand against direct rain and with opening in its lower part for ventilation. On order it can be also equipped with light. MSE 2N are manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents ? material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Complete delivery
  1. stainless steel column
  2. protective switch and short-circuit protection for each socket
  3. el. sockets and el. connection
  4. lock
  5. anchoring construction
Requirements for setting up the construction
  1. Set-up concrete base for installation of anchoring bolts
  2. Set-up supply cable to the middle (? 50 mm) of the column base
Basic technical information
Max.outer dimensions440 × 300 × 970 mm
Input voltage3× 400 V, 50 Hz, TN-S
Max.cross section of el.cable5× 25 mm?
Looping of supply cablesyes
Output voltage230 V
Output current10 A
Figures

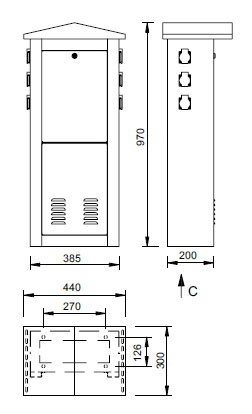

Figure - MSE2 N stainless steel columns for unpaid electriity release (including el.protection)
C -El.supply cable
