ZAC ZAS - power supply unit 80 VA with protection against momentary mains failure

PDFPrintEmail
ZAC ZAS power supply unit is designed for jetton automats placed in premises with frequent momentary mains failure. The failures negatively affect electronics of jetton automats and may destroy them in the upshot. In the case of mains failure output voltage is switched off for 10 seconds and then switched on again. The dangerous momentary mains failure is therefore avoided and replaced by controlled switching off and on of the jetton automat electronics, which eliminates the threat of electronics destruction.
Requirements for setting up the construction
  1. Prepared connection to power supply 230 V, 50 Hz - cable CYKY 3Cx1.5
  2. Niche prepared for built-in installation cca 170 x 250 x 100
  3. Completed distribution to individual devices according to requirements on preliminary building work
Basic technical information
Input voltage230 V, 50 Hz
Output voltage12 V, 50 Hz
Power output80 VA
IP protectionIP 55
Weight2,5 kg
Figures

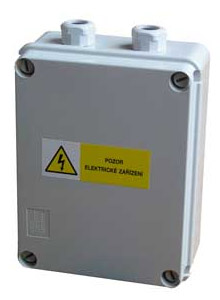

Figure - ZAC ZAS power supply unit 80 VA with protection against momentary mains failure
