BSAU 01 - sensor controlled anti-vandal washbasin

PDFPrintEmail
BSAU 01 is a sensor controlled anti-vandal washbasin. Because its sturdy design, it is intended mainly for installation into the walls of the penitentiary facilities and everywhere where high security standards of hygienic equipment are needed. After inserting hands into the inner area of the washbasin, the infrared beam is disconnected and the electronics turns the water on. After the hands are inserted into the washbasin, water runs for preconfigured period of 40 sec., which prevents from constant flow of water if the sensor is purposely permanently screened. The washbasin can be build into the wall 220 ? 350 mm thick. In the case the wall is thinner than 220 mm, it is possible to level up back cover on the request. If the wall is thicker than 350 mm, bolts M8 x 240 can be replaced by longer ones. The BSAU 01 stainless steel washbasin, in its construction and finish, meets EU standards.
Complete delivery
  1. sink with sensor and front cover
  2. back cover
  3. assembling box
  4. bolts M8 x 240 mm with nuts (4 pieces)
  5. corner valve with filter
  6. waste siphon
  7. connecting hoses
Requirements for setting up the construction
  1. Set up alcove through the wall 350 x 350 mm for installation of the washbasin.
  2. Set up water inlet.
  3. Set up outlet.
  4. Set up cable for power supply ? 12 V, 50 Hz from source of power supply ZAC.
Download information about the product
Basic technical information
Water inletG 1/2? (G 3/4? on request)
Outletd = 40 mm
Dimensions of the front cover420x400 mm
Electricity protectionIP 55
Preconfigured time of water flow / one closure40 sec
After-flow delay time0 ? 4 sec. (adjusted to 1 sec.)
Water pressure0,1 ? 1,0 MPa
Power supply12 V, 50 Hz
Power requirement6 V?
Source of power supplyZAC 1/20 (max. 3 x BSAU 01)
 ZAC 1/50 (max. 8 x BSAU 01)
Weight10 kg
Figures

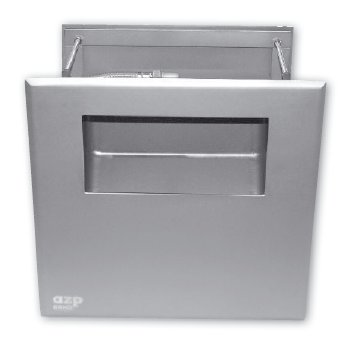

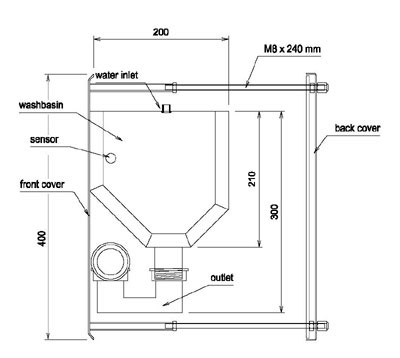

Figure - BSAU 01 sensor controlled anti-vandal washbasin
